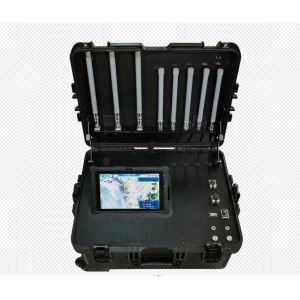

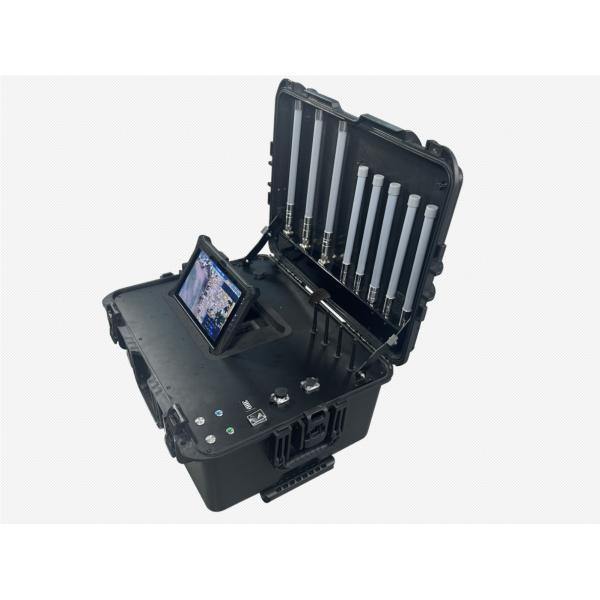

Portable Drone Jammer and Detector Station
Model: HWUDS-IV
Product Description
The portable detection and control integrated box are equipped with
a comprehensive drone management and control system. Through
in-depth analysis and data mining of drone signals. The serial
number, model, and location (longitude, latitude, and azimuth
angle) of the drone within the monitoring range can be determined.
Remote control position (latitude, longitude, azimuth) and other
multi-dimensional information for monitoring. It also has the
function of interfering with the frequency band used by drones,
which can drive away drones or make forced landings, completely
cutting off the connection between drones and remote controllers or
ground stations to ensure the safety of low-altitude airspace in
the area.
This equipment is suitable for different applications, such as
low-altitude security in major event security, guard tasks,
security patrols, special anti-terrorism, political core areas,
border defenses, military restricted areas, military management
areas, power and petrochemical parks and other scenarios.
Functions
1. Drone monitoring: To obtain the serial number, model, location
(latitude, longitude, azimuth), altitude, pilot position (latitude,
longitude, azimuth) and other information of the drone within the
monitoring range;
2. Unique identification (code): It can identify the unique serial
number of the drone and confirm the unique identity information of
the drone;
3. Drone positioning: It can locate the location information of the
drone and display the drone's position (latitude and longitude),
orientation information, and distance information (the distance of
the drone relative to the location of the device) in real time;
4. Pilot positioning: It can locate the pilot's position
information and display the pilot's (remote control) position
(latitude and longitude), orientation information, and distance
information (the distance of the pilot relative to the location of
the device) in real time;
5. Multi-target trajectory tracking: It can position and track
drone swarms and display multiple drone flight trajectories at the
same time;
6. Safety list: It can distinguish cooperative and non-cooperative
drones, the device will not alarm when cooperative drones are
detected, and can markup cooperative drones as trusted;
7. Intrusion alarm: When the device detects a drone intrusion, it
will issue an sound and light alarm;
8. Trajectory playback: Supports drone flight trajectory playback,
assisting security personnel in analyzing historical drone flight
data;
9. Detection records: The detection record list can retain
historical records, including multi-dimensional information, such
as drone serial numbers, models and frequencies, etc.;
10. Multi-unit network: The equipment can be connected to the
back-end management and control platform through the Internet, and
the multi-unit network can cover a large area;
11. Working mode: Using omnidirectional radio frequency
interference antenna
12. Two working modes: expel and forced landing; the control
distance is 1.5km;
Key Features
1. Full range of detection drone models: The system can identify
brands of drones such as DJI, Daotong, Dahua, and Haoxiang, as well
as most of the models on the market such as FPV drones and WiFi
drones;
2. Long detection: an open scenario, the detection distance of some
models can reach more than 5km;
3. Passive detection: the device does not emit any electromagnetic
signals, it is electromagnetic environmental friendly;
4. Integrated software and hardware: Equipped with drone control
platform, it can work independently without configure to the other
equipment;
5. Mobile and portable: Trolley box-type portable design, small in
size, portability;
6. Touch interaction: Touch screen, the operation is simple,
convenient and fast;
7. Dual power supply: The device can be powered by a built-in
battery or an external power supply;
8. Easy deploy: The device antenna is placed on the top cover of
the box, and can be turned on and off by one click;
Technical Parameters
| Detection frequency bands | 900M, 1.2G, 2.4G, 5.2G, 5.8G; |
| Detection distance | 1-5km (depending on the environment) |
| Number of detections | ≥5 sorties can be detected and tracked at the same time; |
| Azimuth error | ≤1.5° (RMS); |
| Positioning accuracy | ≤10m |
| Detection success rate | ≥95% |
| Control mode | wired, wireless |
| Jam frequency bands | 1.5G, 2.4G, 5.8G |
| Control distance | ≤1.5km |
| Power consumption | 270W |
| Power supply | External 220V Built-in 29.4V/33Ah lithium battery |
| Charging time | 4 hours |
| Working hours | 10 hours of detection work, 3 hours of strike work (continuous
work) |
| Screen size | 10.1 inches |
| Screen resolution | 1080P (1920*1200) |
| Equipment size | 65*50*32cm |
| Equipment weight | 31kg |
| Working temperature | -20~65℃ |
| Protection level | IP65 |
Company Introduction
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established
in Beijing.Focus on the development and operation of special safety
equipment, mainly serve the public security law, armed police,
military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was
established in Guannan.Covering an area of 9000 square meters of
workshop and office building, it aims to build a first-class
special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set
up in Shenzhen.Focus on the development of special safety
equipment, has developed more than 200 kinds of professional safety
equipment.

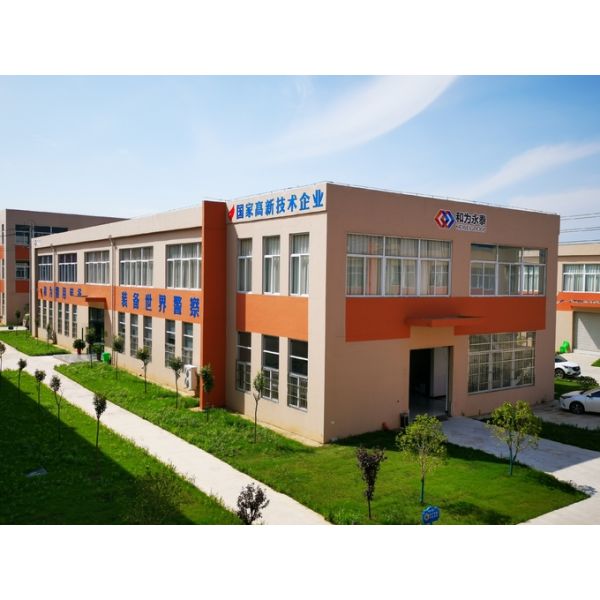

Jiangsu Factory
Shenzhen Research Centre
Overseas Exhibitions

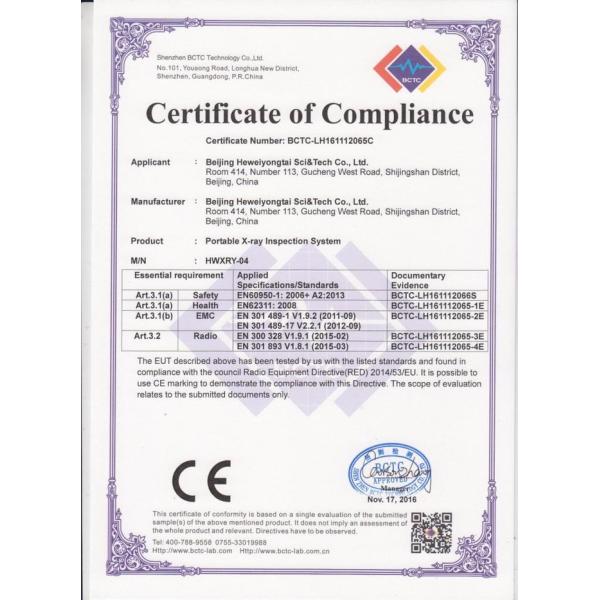

Certificates
