Broad explosive identification, Convenient operation, Portable
Explosive Detector
The product is calibrated automatically.The excellent ABS
polycarbonate casing is sturdy and elegant. The continuous working
time of single battery is more than 8 hours.

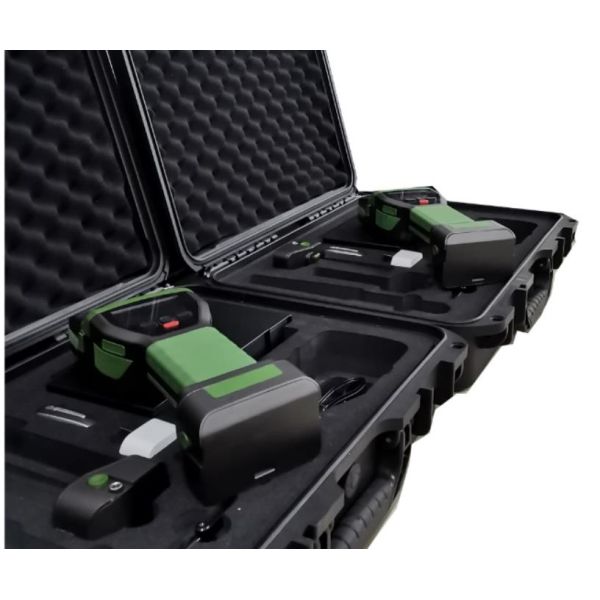

The newly developed HWX16C product is the portable trace explosive
detector with the highest detection limit and the most explosives
in the domestic and foreign markets.
The cold start time is within 10 seconds.The TNT detection limit is
0.05 ng level, and more than 30 kinds of explosives can be
detected.
Features
1.Broad explosive identification
2.Convenient operation
3.High sensitivity and low false alarm rate
4.Quick start and detection speed
| NO | Technical Specs
|
| 1 | Technology | Amplified Fluorescent Polymer Quenching Sensor |
| 2 | Analysis time | ≤5s |
| 3 | Start-up time | ≤10s |
| 4 | Sampling method | Particle and Vapor |
| 5 | Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
| Vapor: PPM |
| 6 | Operating TEMP | - 20 ℃ ~ 55 ℃ |
| 7 | False alarm rate | ≤ 1% |
| 8 | Power Consumption | 7.5W |
| 9 | Rated voltage | 7.4V |
| 10 | Rated Capacity | 65.5Wh |
| 11 | Rated Energy | 8850mAh |
| 12 | Display Screen | 3"TFT Color display Screen |
| 13 | Com Port | USB2.0 |
| 14 | Data Storage | ≥100000pieces of record |
| 15 | Battery | Two Li-ion Rechargeable Battery |
| 16 | Battery Working Time | Single battery time up to 8 hours |
| 17 | Battery Charging Time | ≦3.5hours |
| 18 | Alarming method | Visual / Audible / Vibration |
| 19 | Dimensions | 300mm × 106mm × 71mm |
| 20 | Weight | ≦1.05kg including battery |
| 21 | Protection Level | IP53 |
| 22 | Substances detected | Military, Commercial, and Homemade Explosives including: TNT, DNT,
MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN,
Black Powder, and others. |
Company Introduction
In 2008, Beijing Hewei Yongtai Technology Co., LTD was established
in Beijing.Focus on the development and operation of special safety
equipment, mainly serve the public security law, armed police,
military, customs and other national security departments.
In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was
established in Guannan.Covering an area of 9000 square meters of
workshop and office building, it aims to build a first-class
special safety equipment research and development base in China.
In 2015, a military-police Reserch and development center was set
up in Shenzhen.Focus on the development of special safety
equipment, has developed more than 200 kinds of professional safety
equipment.
